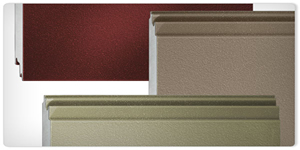

Architectural Wall Panels
Architectural Wall Panels
The Metl-Span Architectural/Horizontal insulated metal wall panel is ideal for high profile horizontal applications. Designed to install with concealed clips and fasteners in the side joint.
Architectural/Horizontal wall panels provide maximum design flexibility and a beautiful high-tech appearance. The horizontal interlocking joint can be varied for visual impact. It may be ordered flush or with a 3/8" deep reveal of 1/4", 1/2", 3/4", 1", 1 1/2", 2", 2 1/2", or 3" width. The panel ends are folded to eliminate the need for metal trim at the vertical butt joint. The joint is sealed with a black dry gasket to create a shadowline effect that can be emulated in the horizontal reveal.
Exterior Profile: Architectural flat with flush or reveal horizontal joints
Interior Profile: Light Mesa nominal 1/16" deep Panel Core: Foamed-in-place, Non-CFC & zero ODP polyurethane, FM Class 1 approval
Thermal Values: K-factor, Btu in/ft2 hr. °F @ 75°F (24°C) mean core temperature = 0.140.
K-factor, Btu in/ft2 hr. °F @ 40°F (4°C) mean core temperature = 0.126
Module Width: 24", 30", 36"
Reveal Width: 1/4", 1/2", 3/4", 1", 1 1/2", 2", 2 1/2", 3"
Panel Thickness: 2", 2 1/2", 3", 4"
Panel Lengths: Standard 8'-0" to 32'-0"
Exterior Facings: Stucco embossed, G-90 galvanized and/or AZ-50 aluminum-zinc coated steel in 22 Ga.
Interior Facings: Stucco embossed, G-90 galvanized and/or AZ-50 aluminum-zinc coated steel in 26 Ga., 24 Ga. and 22 Ga.
Panel Joint: Offset double tongue and groove with extended metal shelf for positive face fastening
Fastening: Fastener and clip concealed in the side joint
Finishes & Colors: A full range of exterior colors & coatings are available for the architectural market. For specific information about our available colors and coatings, visit us online for a comprehensive selection.

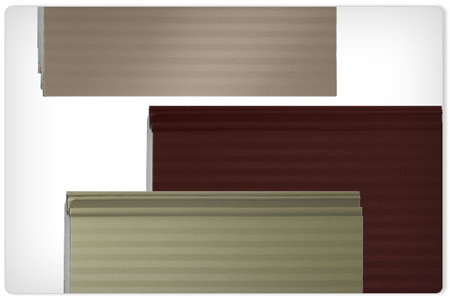

Striated Wall Panels
Striated Wall Panels
The Metl-Span Striated insulated metal wall panel is an attractive and economical alternative to typical flat wall panels. The exterior face is lightly profiled with narrow longitudinal striations and exhibits a virtual flat appearance from a short distance away. The Striated wall panel is an exceptional value combining the aesthetics of a flat wall panel and high insulation ratings of a polyurethane core.
Exterior Profile: Longitudinal striations, nominal 1/32" deep
Interior Profile: Mesa nominal 1/8" deep; Light Mesa nominal 1/16" deep
Panel Core: Foamed-in-place, Non-CFC & zero ODP polyurethane, FM Class 1 approval
Thermal Values: K-factor, Btu in/ft2 hr. °F @ 75°F (24°C) mean core temperature = 0.140
K-factor, Btu in/ft2 hr. °F @ 40°F (4°C) mean core temperature = 0.126
Module Width: 30", 36", 42"
Panel Thickness: 2", 2 1/2", 3" (2 3/4" thickness also available from Nevada plant)
Panel Lengths: 8'-0" to 40'-0" for the 30" & 36" widths, 8'-0" to 32'-0" for the 42" width
Exterior Facings: Stucco embossed, G-90 galvanized and/or AZ-50 aluminum-zinc coated steel in 24 Ga. and 22 Ga.
Interior Facings: Stucco embossed, G-90 galvanized and/or AZ-50 aluminum-zinc coated steel in 26 Ga., 24 Ga. and 22 Ga.
Panel Joint: Offset double tongue and groove with extended metal shelf for positive face fastening
Fastening: Fastener and Clip concealed in the side joint
Color: A full range of exterior colors & coatings are available for the architectural market. For specific information about our available colors and coatings, visit us online for a comprehensive selection.

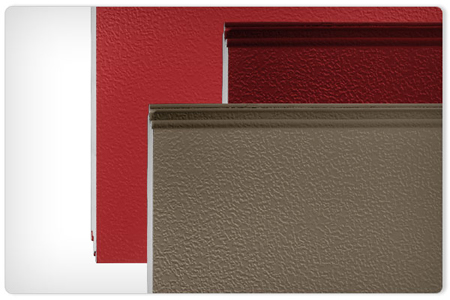

Santa Fe Wall Panels
Santa Fe Wall Panels
The Metl-Span Santa Fe® insulated metal wall panel has a flat exterior profile with a heavy embossed, stucco texture that mimics the look of a masonry stucco finish.
Exterior Profile: No profile with heavy stucco texture
Interior Profile: Mesa nominal 1/8" deep; Light Mesa nominal 1/16" deep
Panel Core: Foamed-in-place, Non-CFC & zero ODP polyurethane, FM Class 1 approval
Thermal Values: K-factor, Btu in/ft2 hr. °F @ 75°F (24°C) mean core temperature = 0.140
K-factor, Btu in/ft2 hr. °F @ 40°F (4°C) mean core temperature = 0.126
Module Width: 36", 42"
Panel Thickness: 2", 2 1/2", 3", 4" (2 3/4" thickness also available from Nevada plant)
Panel Lengths: 8'-0" to 40'-0"
Exterior Facings: Stucco embossed, G-90 galvanized and/or AZ-50 aluminum-zinc coated steel in 24 Ga. and 22 Ga.
Interior Facings:Stucco embossed, G-90 galvanized and/or AZ-50 aluminum-zinc coated steel in 26 Ga., 24 Ga. and 22 Ga.
Panel Joint: Offset double tongue and groove with extended metal shelf for positive face fastening
Fastening: Fastener and Clip concealed in the side joint
Color: A full range of exterior colors & coatings are available for the architectural market. For specific information about our available colors and coatings, visit us online for a comprehensive selection.

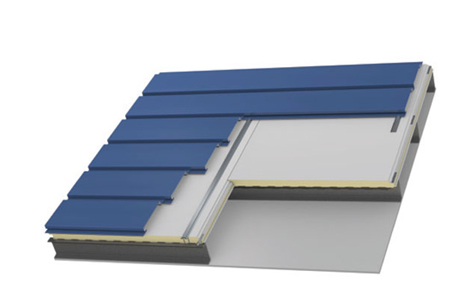

HPCI Barrier Wall Panels
HPCI Barrier Wall Panels
The HPCI Barrier™ insulated metal panel is an air, water, thermal and vapor barrier panel that can be used behind any type of facade. The HPCI Barrier back-up panel is installed in a horizontal orientation completely outside the structural supports. There are no thermal bridges to reduce the energy efficiency of the wall. HPCI Barrier is quick and easy to install and provides an economical solution to conventional air, water, thermal and vapor control without sacrificing thermal efficiency.
Exterior Profile: No profile embossed
Interior Profile: Light Mesa embossed
Panel Core: Foamed-in-place, Non-CFC & zero ODP polyurethane
Thermal Values: K-factor, Btu in/ft2 hr. °F @ 75°F (24°C) mean core temperature = 0.140
Module Width: 42"
Panel Thickness: 2", 3", 4"
Panel Lengths: 8'-0" to 24'-0"
Exterior Facings: Minimum .016" thick HPCI galvanized steel
Interior Facings: Minimum .016" thick HPCI galvanized steel
Panel Joint: Offset double tongue and groove with extended metal shelf for positive face fastening
Fastening: Fastener and Clip concealed in the side joint Factory caulking available
Color: White polyester
Oil Canning: All flat metal surfaces can display waviness commonly referred to as "oil canning." "Oil canning" is an inherent characteristic of steel products, not a defect, and therefore is not a cause for panel rejection.

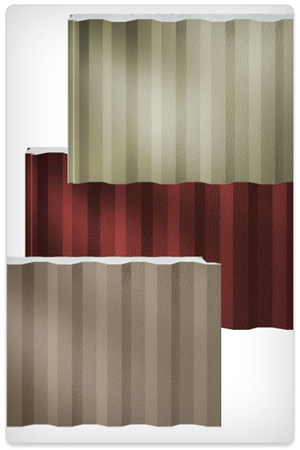

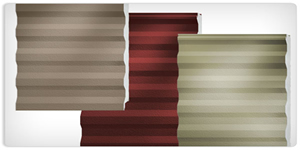

7.2 Insul-Rib™ Wall Panels
7.2 Insul-Rib™ Wall Panels
The 7.2 Insul-Rib™ insulated metal wall panel combines a traditional 7.2 rib panel design with a polyurethane foam core. For the first time, this widely used profile is now available with exceptional insulating properties in various thicknesses.
Exterior Profile: 7.2" on-center rib pattern, 1 1/2" deep
Interior Profile: Mesa nominal 1/8" deep
Panel Core: Foamed-in-place, Non-CFC & zero ODP urethane, FM Class 1 approval
Thermal Values: K-factor, Btu in/ft2 hr. °F @ 75°F (24°C) mean core temperature = 0.140.
K-factor, Btu in/ft2 hr. °F @ 40°F (4°C) mean core temperature = 0.126
Module Width: 36" Panel Thickness: Nominal overall 3", 4", 5", 6"
Panel Lengths: 8'-0" to 40'-0"
Exterior Facings: Stucco embossed, G-90 galvanized and/or AZ-50 aluminum-zinc coated steel in 26 Ga., 24 Ga. and 22 Ga.
Interior Facings: Stucco embossed, G-90 galvanized and/or AZ-50 aluminum-zinc coated steel in 26 Ga., 24 Ga. and 22 Ga.
Panel Joint: Offset double tongue and groove with extended metal shelf for positive face fastening Fastening: Fastener and Clip concealed in the side joint
Color: A full range of exterior colors & coatings are available for the architectural market. For specific information about our available colors and coatings, visit us online for a comprehensive selection.

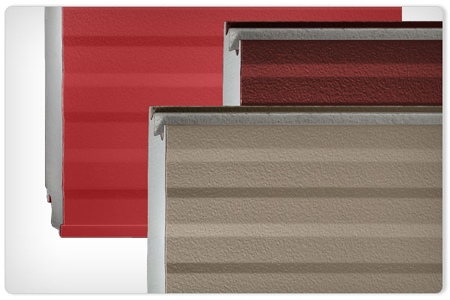

Mesa Wall Panels
Mesa Wall Panels
The Metl-Span CF Mesa and Light Mesa insulated metal wall panels are well suited for exterior and interior partition wall applications. The lightly corrugated profile on both faces of the panels ensures symmetry from outside of the building to inside, and from room to room in partition installations. The CF Mesa and Light Mesa wall panels may be used for exterior wall applications, but they are not recommended for use on exterior walls of low temperature buildings.
Exterior Profile: Mesa nominal 1/8" deep; Light Mesa nominal 1/16" deep
Interior Profile: Mesa nominal 1/8" deep; Light Mesa nominal 1/16" deep
Panel Core: Foamed-in-place, Non-CFC & zero ODP polyurethane, FM Class 1 approval
Thermal Values: K-factor, Btu in/ft2 hr. °F @ 75°F (24°C) mean core temperature = 0.140
K-factor, Btu in/ft2 hr. °F @ 40°F (4°C) mean core temperature = 0.126
Panel Thickness: 2", 2 1/2", 3", 4", 5", 6"
CF Light Mesa: 2", 2 1/2", 3", 4" (2 3/4" thickness also available from Nevada plant)
Module Width: 36", 42"
Panel Lengths: 8'-0" to 53'-0"
Exterior Facings: Stucco embossed, G-90 galvanized and/or AZ-50 aluminum-zinc coated steel in 26 Ga., 24 Ga. and 22 Ga.
Interior Facings: Stucco embossed, G-90 galvanized and/or AZ-50 aluminum-zinc coated steel in 26 Ga., 24 Ga. and 22 Ga.
Panel Joint: Offset double tongue and groove with extended metal shelf for positive face fastening
Fastening: Fastener and Clip concealed in the side joint
Color: A full range of exterior colors & coatings are available for the architectural market. For specific information about our available colors and coatings, visit us online for a comprehensive selection.

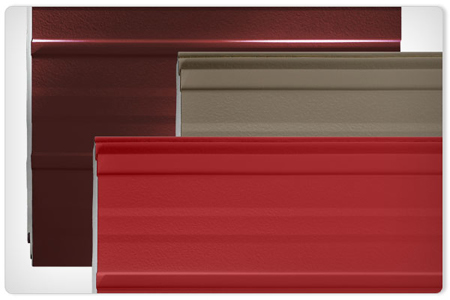

CF Fluted Wall Panels
CF Fluted Wall Panels
The ribbed profile of the Metl-Span CF Fluted insulated metal wall panel provides bold vertical lines complementary to almost any commercial or industrial building. The CF Fluted wall panel is the recommended profile for the exterior of cold storage buildings.
Exterior Profile: Flutes 1" wide and nominal 3/8" deep
Interior Profile: Mesa nominal 1/8" deep; Light Mesa nominal 1/16" deep, Light Mesa not available for 5- or 6-inch thick panels
Panel Core: Foamed-in-place, Non-CFC & zero ODP polyurethane, FM Class 1 approval
Thermal Values: K-factor, Btu in/ft2 hr. °F @ 75°F (24°C) mean core temperature = 0.140.
K-factor, Btu in/ft2 hr. °F @ 40°F (4°C) mean core temperature = 0.126
Panel Thickness: 2", 2 1/2", 3", 4", 5", 6" (2 3/4" thickness also available from Nevada plant)
Module Width: 42"
Panel Lengths: 8'-0" to 53'-0"
Exterior Facings: Stucco embossed, G-90 galvanized and/or AZ-50 aluminum-zinc coated steel in 26 Ga., 24 Ga. and 22 Ga.
Interior Facings: Stucco embossed, G-90 galvanized and/or AZ-50 aluminum-zinc coated steel in 26 Ga., 24 Ga. and 22 Ga.
Panel Joint: Offset double tongue and groove with extended metal shelf for positive face fastening
Fastening: Fastener and Clip concealed in the side joint
Color: A full range of exterior colors & coatings are available for the architectural market. For specific information about our available colors and coatings, visit us online for a comprehensive selection.

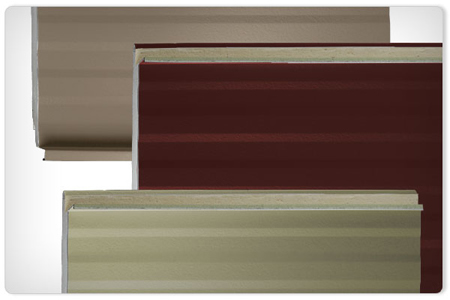

CFR Roof Panels
CFR Roof Panels
Metl-Span CFR is an insulated metal standing seam roof panel, and is the foremost innovation in all-in-one composite panel design, combining durable interior and exterior faces with Metl-Span's unmatched polyurethane core. The CFR roof panel provides exceptional benefits including a standing seam exterior face for unsurpassed weathertight performance, and panel widths contributing to installation savings because there are fewer side joints to seal. CFR roof panels are installed completely from the top side with concealed clips and fasteners placed in the side joint. Cold Storage applications may require alternate methods of attachment. Factory cut panel ends, factory notching and factory swaged ends eliminate critical and extensive field reworking and reduce erection costs. Factory installed backer plates at the endlaps also eliminate pre-drilling for special fasteners and fastener tools. Careful design parameters have enabled Metl-Span to create an incomparable roof system that is easily and quickly installed without dependence on highly skilled labor.
Exterior Profile: 2" high standing seam with Mesa profile between the seams
Interior Profile: Mesa, nominal 1/8" deep
Panel Core: Foamed-in-place, Non-CFC & zero ODP polyurethane, FM Class 1 approval
Thermal Values: K-factor, Btu in/ft2 hr. °F @ 75°F (24°C) mean core temperature = 0.140.
K-factor, Btu in/ft2 hr. °F @ 40°F (4°C) mean core temperature = 0.126
Panel Thickness: 2", 2 1/2", 3", 4", 5", 6"
Module Width: 30", 36", 42"
Panel Lengths: 9'-6" to 53'-0"
Exterior Facings: Stucco embossed, G-90 galvanized and/or AZ-50 aluminum-zinc coated steel in 24 Ga. and 22 Ga.
Interior Facings: Stucco embossed, G-90 galvanized and/or AZ-50 aluminum-zinc coated steel in 26 Ga., 24 Ga. and 22 Ga.
Panel Joint: Mechanically closed single lock standing seam at the exterior side joint. The interior side joint is a single tongue and groove interlock
Fastening: Two-piece clip with fasteners concealed in the side joint. Cold Storage applications may require alternate methods of attachment. Contact the factory.
Uplift Performance: UL 90 rated, FM Approvals Standard 4471, and Florida Building Code approved. Dade County NOA No. 09-0310-10
Color: A full range of exterior colors & coatings are available for the architectural market. For specific information about our available colors and coatings, visit us online for a comprehensive selection.

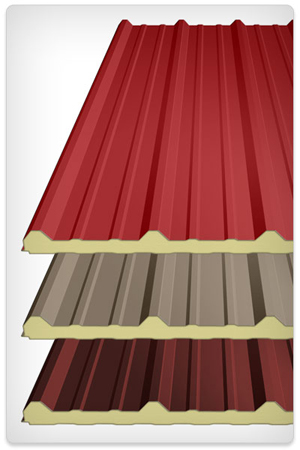

LS-36™ Roof and Wall Panel
LS-36™ Roof and Wall Panel
The versatility of Metl-Span's LS-36™ insulated metal roof and wall panel offers a multitude of design options. The overlapping, through fastened joint allows for quick installation in roof or wall applications that results in reduced labor costs and earlier business starts. Owners will also appreciate the energy cost savings that an insulated metal panel provides.
Exterior Profile: 1 ¼" high major ribs at 12" o.c. with Mesas in between ribs at 4" o.c.
Interior Profile: Mesa nominal 1/8" deep
Panel Core: Foamed-in-place, non-CFC, zero ozone depleting (zero ODP) polyisocyanurate, Factory Mutual Class 1 approval
Thermal Values: K-factor, Btu in/ft2 hr. °F @ 40°F (4°C) mean core temperature = 0.126
Panel Thickness: 1 ½", 2", 2 ½", 3", 4", 5", 6"
CF Light Mesa: 2", 2 1/2", 3", 4" (2 3/4" thickness also available from Nevada plant)
Module Width: 36"
Panel Lengths: 8'-0" to 50'-0"
Exterior Facings: Stucco embossed, G-90 galvanized and/or AZ-50 aluminum-zinc coated steel in 26 Ga., 24 Ga. and 22 Ga.
Interior Facings: Stucco embossed, G-90 galvanized and/or AZ-50 aluminum-zinc coated steel in 26 Ga., 24 Ga. and 22 Ga.
Panel Joint: Overlapping with a single tongue and groove
Fastening: Exposed through fasteners
Minimum Slope: ½:12
Color: A full range of exterior colors & coatings are available for the architectural market. For specific information about our available colors and coatings, visit us online for a comprehensive selection.

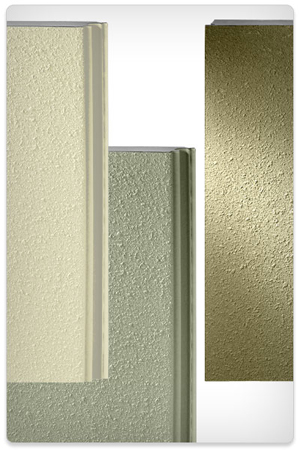

Tuff Wall®
Tuff Wall®
Tuff Wall® is an exceptionally attractive stucco-like insulated metal wall panel that exhibits the natural beauty that many designers and owners prefer. The exterior stucco-like surface of the panel is a hard aggregated fiber reinforced polymer coating created with the factory applied Tuff Cote® finish system. Tuff Cote finish offers an extremely durable impact and abrasion resistant coating that withstands severe weather conditions. Unlike field-applied finishes that are vulnerable to damp or cold weather during installation, Tuff Wall panels can be erected in virtually any weather condition. The interior face of the Tuff Wall panel is finished with an attractive Mesa profile and painted with a white polyester coating.
- The masonry look of stucco with the efficiency of an insulated metal panel
- The field-tested and proven Tuff Cote technology
- A durable finish that is highly resistant to impact and abrasion
- A 10-year limited warranty
Exterior Profile: No profile with Tuff Cote finish system
Interior Profile: Mesa nominal 1/8" deep; Light Mesa nominal 1/16" deep, Light Mesa not available for 5- or 6-inch thick panels
Panel Core: Foamed-in-place, Non-CFC & zero ODP polyurethane, FM Class 1 approval
Thermal Values: K-factor, Btu in/ft2 hr. °F @ 75°F (24°C) mean core temperature = 0.140.
K-factor, Btu in/ft2 hr. °F@ 40°F (4°C) mean core temperature = 0.126
Panel Thickness: 2", 2 1/2", 3", 4", 5", 6"
Module Width: 36", 42"
Panel Lengths: 8'-0" to 40'-0"
Exterior Facings: Stucco embossed, G-90 galvanized and/or AZ-50 aluminum-zinc coated steel in 24 Ga. and 22 Ga. with factory applied Tuff Cote finish system
Interior Facings: Stucco embossed, G-90 galvanized and/or AZ-50 aluminum-zinc coated steel in 26 Ga., 24 Ga. and 22 Ga.
Exterior Textures: Tuff Cote finish system - a hard aggregated fiber reinforced polymer coating
Panel Joint: Offset double tongue and groove with extended metal shelf for positive face fastening
Fastening: Fastener and Clip concealed in the side joint
Color: Medium Beige, Antique Bronze, Surrey Beige, Warm Limestone, Light Stone, Light Gray and Stucco White

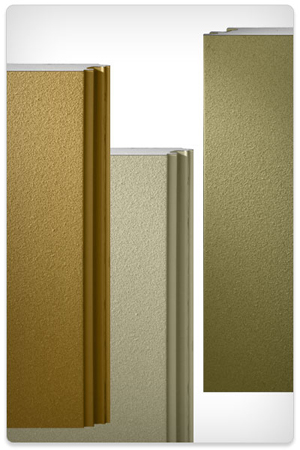

Tuff-Cast™
Tuff-Cast™
Tuff-Cast™ is an exceptionally attractive insulated metal wall panel with the look of finished precast concrete. The exterior surface of the panel is a hard aggregated fiber reinforced polymer coating created with the factory applied Tuff Cote® finish system. Tuff Cote® finish offers an extremely durable impact and abrasion resistant coating that withstands severe weather conditions. Unlike field-applied finishes that are vulnerable to damp or cold weather during installation, Tuff-Cast™ panels can be erected in virtually any weather condition. The interior face of the Tuff-Cast™ panel is finished with an attractive Mesa profile and painted with a white polyester coating.
- The look of finished precast concrete with the efficiency of an insulated metal panel
- The field-tested and proven Tuff Cote technology
- A durable finish that is highly resistant to impact and abrasion
- A 10-year limited warranty
Exterior Profile: No profile with Tuff Cote finish system
Interior Profile: Mesa nominal 1/8" deep; Light Mesa nominal 1/16" deep, Light Mesa not available for 5- or 6-inch thick panels
Panel Core: Foamed-in-place, Non-CFC & zero ODP polyurethane, FM Class 1 approval
Thermal Values: K-factor, Btu in/ft2 hr. °F @ 75°F (24°C) mean core temperature = 0.140.
K-factor, Btu in/ft2 hr. °F@ 40°F (4°C) mean core temperature = 0.126
Panel Thickness: 2", 2 1/2", 3", 4", 5", 6"
Module Width: 36", 42"
Panel Lengths: 8'-0" to 40'-0"
Exterior Facings: Stucco embossed, G-90 galvanized and/or AZ-50 aluminum-zinc coated steel in 24 Ga. and 22 Ga. with factory applied Tuff Cote finish system
Interior Facings: Stucco embossed, G-90 galvanized and/or AZ-50 aluminum-zinc coated steel in 26 Ga., 24 Ga. and 22 Ga.
Exterior Textures: Tuff Cote finish system - a hard aggregated fiber reinforced polymer coating
Panel Joint: Offset double tongue and groove with extended metal shelf for positive face fastening
Fastening: Fastener and Clip concealed in the side joint
Color: Medium Beige, Antique Bronze, Surrey Beige, Warm Limestone, Light Stone, Light Gray and Stucco White
